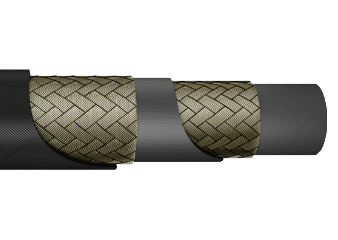

SAE J517 R16 Wire Braided Hydraulic Hose
Internal hose: Synthetic rubber, extruded whole without joints, of uniform thickness
Reinforcement: 2 layers of steel wire braid
Covering: Anti-abrasive synthetic rubber, resistant to oils, fuels and atmospheric conditions
Working Pressure: 125–400 Bar / 181.35–5800 PSI
Impulse times: ≥ 200,000 Times
Media: Mineral and biological oils, glicol-water based, water, lubricants
| SIZE |
I.D. |
O.D. |
WORKING
PRESSURE
|
BURST
PRESSURE
|
BEND RADIUS |
WEIGHT |
Length Per PCS |
DASH
SIZE |
MM |
INCH |
MM |
MM |
BAR |
PSI |
BAR |
PSI |
MM |
KG/M |
METER |
| -04 |
6.4 |
1/4" |
6.2-7.0 |
14.5MAX |
400 |
5800 |
1600 |
23200 |
50 |
0.290 |
50/100 |
| -05 |
8.0 |
5/16" |
7.7-8.5 |
15.7MAX |
350 |
5075 |
1400 |
20300 |
55 |
0.330 |
50/100 |
| -06 |
9.5 |
3/8" |
9.3-10.1 |
18.8MAX |
330 |
4785 |
1320 |
19140 |
65 |
0.420 |
50/100 |
| -08 |
12.7 |
1/2" |
12.3-13.5 |
22.0MAX |
275 |
3987.5 |
1100 |
15950 |
90 |
0.550 |
50/100 |
| -10 |
16.0 |
5/8" |
15.5-16.7 |
25.4MAX |
250 |
3625 |
1000 |
14500 |
100 |
0.650 |
50/100 |
| -12 |
19.0 |
3/4" |
18.6-19.8 |
29.0MAX |
215 |
3117.5 |
860 |
12470 |
120 |
0.790 |
50/100 |
| -16 |
25.4 |
1" |
25.0-26.4 |
36.6MAX |
165 |
2392.5 |
660 |
9570 |
150 |
1.180 |
50/100 |
| -20 |
31.5 |
1.1/4" |
31.4-33.0 |
44.3MAX |
125 |
1812.5 |
500 |
7250 |
210 |
1.800 |
50 |
