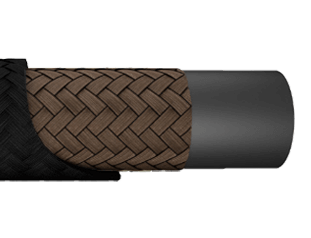

SAE J517 R6CT Textile Braided Hydraulic Hose
Internal hose: Synthetic rubber, extruded whole without joints, of uniform thickness
Reinforcement: 1 layer of textile braid
Covering: Black Color textile braided cover
Working Pressure: 20 Bar / 290 PSI
Media: Hose designed for oil delivery
Cover Type: Textile fabrics
Packing Type: Roll, Pallet, Reel
Outward Appearance: Black
| SIZE |
I.D. |
O.D. |
WORKING
PRESSURE
|
BURST
PRESSURE
|
BEND RADIUS |
WEIGHT |
Length Per PCS |
DASH
SIZE |
MM |
INCH |
MM |
MM |
BAR |
PSI |
BAR |
PSI |
MM |
KG/M |
METER |
| -03 |
4.8 |
3/16" |
4.4-5.2 |
10.0-11.6 |
35 |
507.5 |
140 |
2030 |
50 |
0.100 |
50 |
| -04 |
6.4 |
1/4" |
5.9-6.9 |
11.6-13.2 |
28 |
406 |
112 |
1624 |
65 |
0.110 |
50 |
| -05 |
8.0 |
5/16" |
7.4-8.4 |
13.1-14.7 |
28 |
406 |
112
|
1624 |
75 |
0.130 |
50 |
| -06 |
9.5 |
3/8" |
9.0-10.0 |
14.7-16.3 |
28 |
406 |
112 |
1624 |
75 |
0.160 |
50 |
| -08 |
12.7 |
1/2" |
12.1-13.3 |
17.7-19.7 |
28 |
406 |
112 |
1624 |
100 |
0.220 |
50 |
| -10 |
16.0 |
5/8" |
15.3-16.5 |
21.9-23.9 |
24 |
348 |
96 |
1392 |
125 |
0.270 |
50 |
| -12 |
19.0 |
3/4" |
18.2-19.8 |
25.4-27.8 |
21 |
304.5 |
84 |
1218 |
150 |
0.330 |
50 |
| -16 |
25.4 |
1" |
24.6-26.2 |
33.4 |
12 |
174 |
48 |
696 |
155 |
0.500 |
50 |
